Product No: CX500

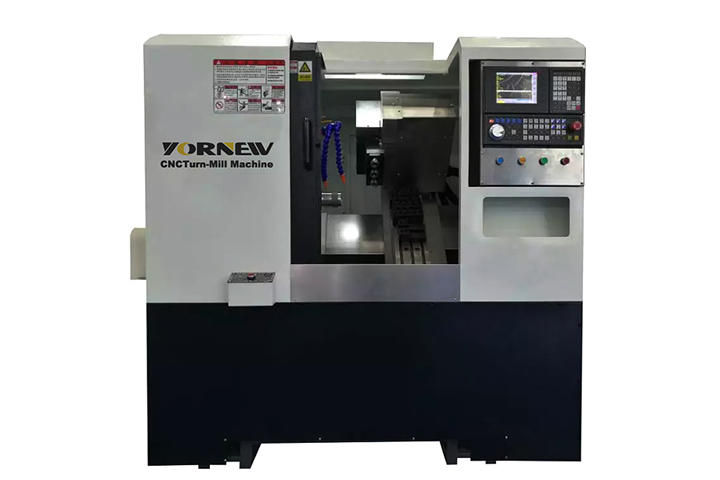

Product Name: Middle CNC Turn-Mill Machine


  • With sink and nozzles.
  • High performance Industrial Grade CNC Controller,
  • With sink and nozzles
  • CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
  • Selection of high -quality casting materials, more compact.
  • 380V three-phase AC power supply.
  • Applicable industry: Mass production of bar materials, including copper, aluminum, steel, stainless steel

YORNEW CNC
YORNEW CNC

Features

(1).With sink and nozzles.
(2).High performance Industrial Grade CNC Controller,
(3).CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(4). The standard spec includes MPG hand wheel.
(5). USB port for program input,
(6). Control speed by G code.
(7). Selection of high -quality casting materials, more compact.
(8). A collection of ball screw, bearings and couplings with high precision positioning, while adding an oil lubrication system, to protect your machine precision, extended service life.
(9). 380V three-phase AC power supply.
(10). Safety electrical components of high quality.
(11). Applicable industry: Mass production of bar materials, including copper, aluminum, steel, stainless steel



Technical parameters

Max Spindle Speed

rpm

3500(4000 max)

Finish after machining



1.6Ra

Spindle hole

mm

25

Repeat positioning accuracy

mm

±0.01

Unilateral cutting amount

mm

2mm (3mm max)

Spindle Power

kw

3.7Kw Servo motor

X/Z Axis Motor



1.2Kw Servo motor

Y Axis Motor



1.2Kw Servo motor

Power head



3 tools standard

4 tools optional

X Axis Travel

mm

500

Z Axis Travel

mm

180

Fast feed rate

m/min

20m/min (30m/min max)

Clamping Diameter

mm

Hydraumaticφ40mm(φ50 max)

Cutting Feed Rate

mm/rev

0.001-500

Cutting Length

mm

180

Cutting Length With Lathe Center Frame

mm

120

Machine Bed Inclination

°

30

Controller

KY

Yornew Industrial CNC Controller

Ball Screw



Taiwan P4

Linear Guide



Taiwan P4 Linear Guide rail

Weight

kg

1800-2200

Machine Size

Mm

1700*1200*1800

Packing Size

Mm

1950*1300*2050mm


Standard accessories: Hydraulic pressure clamping system, Hydraulic collet, working lamp,
workpiece cooling system, auto lubricating system, Tool holders, Hexagon wrench set.
Optional accessories: Hydraulic Chuck, Cutting tool set, Drilling/Milling tool set.

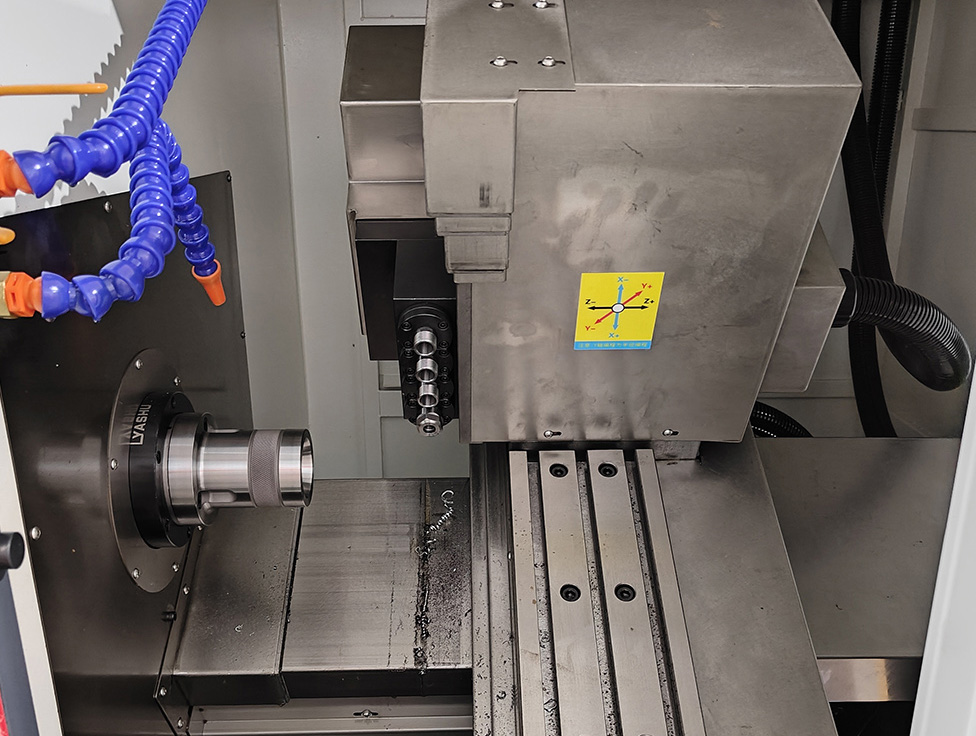

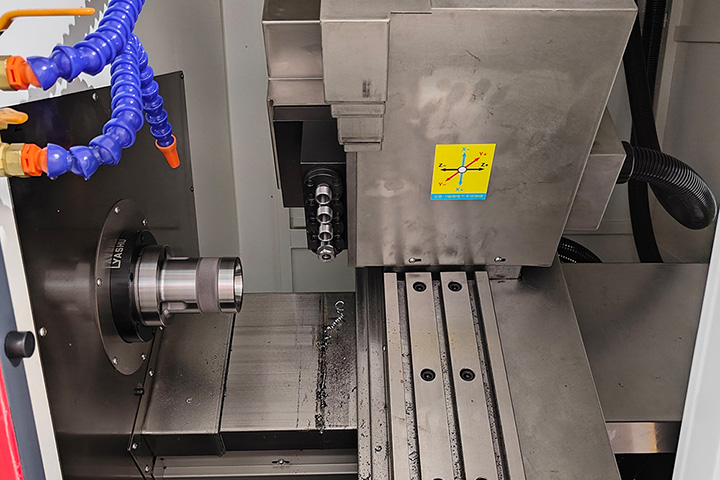

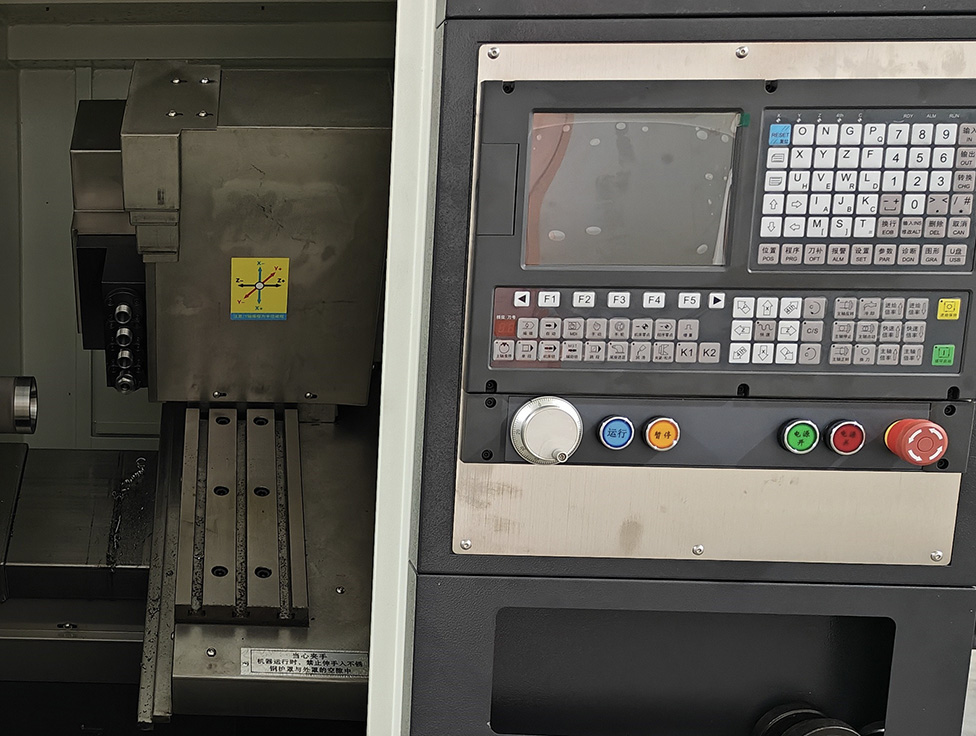

CX500 Middle CNCTurn-Mill Machine

CX500 Middle CNCTurn-Mill Machine

CX500 Middle CNCTurn-Mill Machine

CX500 Middle CNCTurn-Mill Machine
